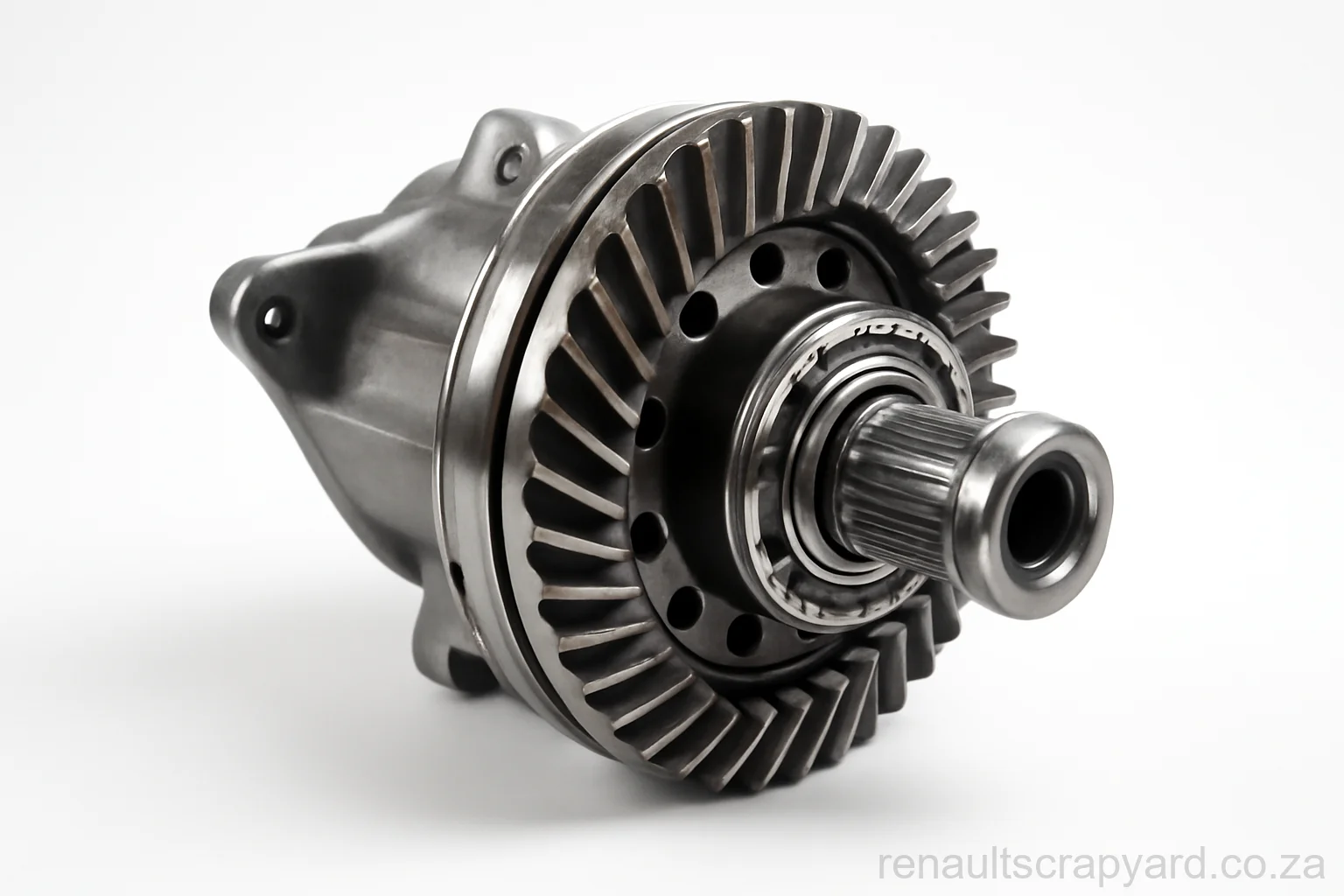

Hyundai i10 Differential Assembly
Differential Assembly to suit the Hyundai i10, cross-referenced against OEM specification and dispatched countrywide
What Are Hyundai i10 Differential Assembly?
The differential lets the two driven wheels turn at different speeds through a corner while still both receiving drive. On most of the Hyundai range sold here it is not a separate unit at all — the i10, i20, Getz, Accent, Elantra, Creta and the front-drive Tucson derivatives all carry the final drive inside the gearbox casing, so a "diff" job on those cars is a gearbox job. A standalone differential you can unbolt only exists on the rear-drive and all-wheel-drive Hyundais: the H100, H1, Mighty, Terracan and the AWD Santa Fe and Tucson derivatives. A worn final drive announces itself as a whine that rises and falls with road speed rather than with engine revs — which is how we tell it apart from a tired wheel bearing.
Signs You Need New Differential Assembly
Before you order differential assembly for a i10
On the i10, PA, then the Grand i10 BA, then AI3 are all in circulation locally, and they do not share one parts list.The original PA i10 and the later Grand i10 are separate platforms with separate parts catalogues — "i10" on its own is not enough to order from.
Engine families fitted to the SA-market i10:
Manual and automatic derivatives of the same Hyundai take entirely different mountings, driveshafts and coolers, and the automatic itself changed within some generations.
Send us manual or automatic, the number of gears, and the engine it is bolted to with your enquiry and we will confirm the correct differential assembly against your car before anything is dispatched.
In South Africa the i10 is mostly first cars, driving-school fleets and short-hop city work, so components see far more cold starts per thousand kilometres than the odometer suggests. That is the wear pattern we stock and source against.
Hyundai i10 Differential Assembly — Questions We Get Asked
Will differential assembly from another i10 fit mine?
Not automatically. The i10 sold in South Africa as PA, then the Grand i10 BA, then AI3, and the original PA i10 and the later Grand i10 are separate platforms with separate parts catalogues — "i10" on its own is not enough to order from. Send us the generation code off your VIN plate and we will confirm it either way before anything is dispatched.
Which engines did the South African i10 come with?
SA-market cars ran Epsilon 1.1 (PA), Kappa 1.25 (Grand i10), Kappa 1.2 (AI3). The code stamped on the block is what we work from — the badge on the boot is not reliable on its own.
Does my Hyundai have a separate differential at all?
Probably not. The i10, i20, Getz, Accent, Elantra, Creta and the front-drive Tucson derivatives all carry the final drive inside the gearbox casing, so what feels like a diff fault is a gearbox job. A standalone diff you can unbolt exists only on the H100, H1, Mighty, Terracan and the all-wheel-drive Santa Fe and Tucson derivatives.
What does a Hyundai differential replacement cost?
Because most of the range runs an integrated diff, replacement usually means a gearbox swap rather than a diff swap. SA used gearboxes range from budget to premium depending on mileage, all available through our supplier network. Send your VIN for a quote and tell us whether the car is manual or automatic.
My Hyundai whines — is that the diff?
Possibly. The tell is what the noise tracks: a worn final drive whines in step with road speed, while a noise that follows engine revs is something else entirely. Worn pinion or crown-wheel bearings hum at low revs; a low gearbox oil level or a worn input-shaft bearing produce something similar. Check the fluid level first — it is a two-minute job and it is free.
Rebuild or replace?
On the integrated units, a proper rebuild with new bearings, crown wheel, pinion and seals often lands at the cost of a good used gearbox, and the used box usually wins on labour hours. On the standalone rear diffs from the rear-drive and 4x4 models, a rebuild makes far more sense.
How often should the gearbox oil be changed?
Hyundai calls the manual gearbox fluid lifetime, but in practice we recommend a change every 60,000 to 80,000 km, and more readily on cars living with SA dust and heat. Fresh gear oil is cheap next to crown-wheel and bearing wear. Raise it at the next service rather than waiting for a noise.
Not sure which differential assembly fits your i10?
Send us your VIN or the engine code off the block and our Hyundai desk will cross-check the correct differential assembly for your exact i10 derivative.
