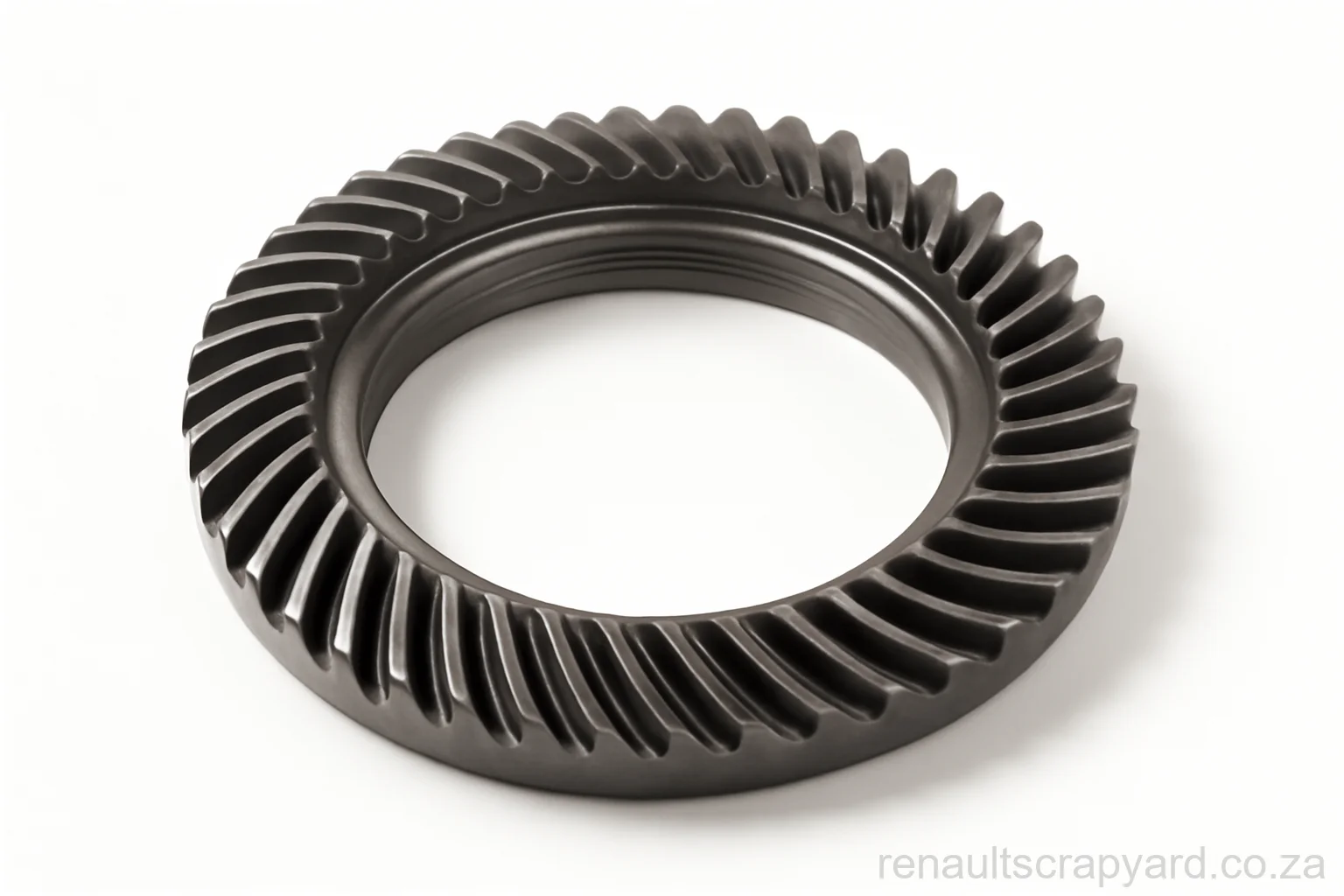

Hyundai i30 Ring Gear
Whether your i30 is an early or late build, we match the ring gear to your derivative rather than to the badge
What Are Hyundai i30 Ring Gear?
The ring gear is the toothed outer ring the starter pinion bites into to crank the engine. Before anything else, we need to know whether your Hyundai is a manual or an automatic — Hyundai offered both on nearly every model sold here, and on a manual the ring gear is part of the flywheel while on an automatic it sits on the flexplate behind the torque converter. Two different parts, two different prices, two different jobs. Chewed teeth are almost always a symptom rather than a cause: a starter whose Bendix has gone lazy slams into the ring gear instead of meshing with it, so replacing the ring gear without sorting the starter buys you the same failure twice.
Signs You Need New Ring Gear
Before you order ring gear for a i30
Does one ring gear listing cover every i30?
No. On the i30, FD, GD and PD are all in circulation locally, and they do not share one parts list.N Line and standard derivatives differ in brakes, suspension and bumper mouldings — the badge on the boot changes the parts list, not just the trim.
Which engine is in my i30?
SA-market cars were sold with Beta II 2.0 (FD), Nu 1.8 (GD), 1.4 T-GDi (PD N Line) and U-line 1.6 CRDi on selected derivatives. The code stamped on the block settles it — the badge on the boot does not.
What do you need from me to quote ring gear?
Manual or automatic, the number of gears, and the engine it is bolted to. Manual and automatic derivatives of the same Hyundai take entirely different mountings, driveshafts and coolers, and the automatic itself changed within some generations.
In South Africa the i30 is mostly bought by drivers who wanted a more solid-feeling hatch, and now aging into the independent aftermarket where the Kia cross-reference becomes genuinely useful. That is the wear pattern we stock and source against.
Before You Order i30 Ring Gear
Will ring gear from another i30 fit mine?
Not automatically. The i30 sold in South Africa as FD, GD and PD, and N Line and standard derivatives differ in brakes, suspension and bumper mouldings — the badge on the boot changes the parts list, not just the trim. Send us the generation code off your VIN plate and we will confirm it either way before anything is dispatched.
How do you check ring gear actually fits a i30?
We work backwards from the VIN: generation first, then engine family, then whether the car is pre- or post-facelift within that generation. On the i30 specifically, N Line and standard derivatives differ in brakes, suspension and bumper mouldings — the badge on the boot changes the parts list, not just the trim.
Is my Hyundai a manual or an automatic? Why does that decide the part?
Because the ring gear lives in two different places. On a manual it is part of the flywheel; on an automatic it sits on the flexplate behind the torque converter. Hyundai offered both on nearly every model sold here, so until we know which one you have we cannot price it. Two different parts, two different jobs.
What does a worn starter ring gear sound like?
Grinding on start, the starter spinning without engaging, and a crunch as the pinion catches a damaged tooth. The tell is that it only happens from certain parking positions — that means the wear is on one arc of the ring and the engine has stopped with those teeth facing the starter.
Can the ring gear be replaced on its own, or does the flywheel go too?
On older Hyundais with a heat-shrunk ring, a competent machinist can press the old one off and fit a new one. Where a dual-mass flywheel is fitted, replacement generally means the whole flywheel. Send the engine code and we will tell you which of the two you are dealing with before you commit to anything.
What does a Hyundai ring gear cost in South Africa?
It depends entirely on whether you need a standalone ring or a complete flywheel. Request a free quote with your engine code and we will price both routes — a good used flywheel with a sound ring gear often comes in under a new ring on its own.
Should the starter be replaced at the same time?
Almost always, yes. The starter is usually what chewed the ring gear in the first place — a tired Bendix or a lazy solenoid slams the pinion into the teeth instead of meshing with them. Fitting a new ring gear behind the old starter buys you the same failure again, and the labour twice.
Learn More About Hyundai i30 Ring Gear
Let us confirm the ring gear before you buy
Photos of the old part and your VIN are usually all we need. We confirm the ring gear against your i30 before quoting, not after.
